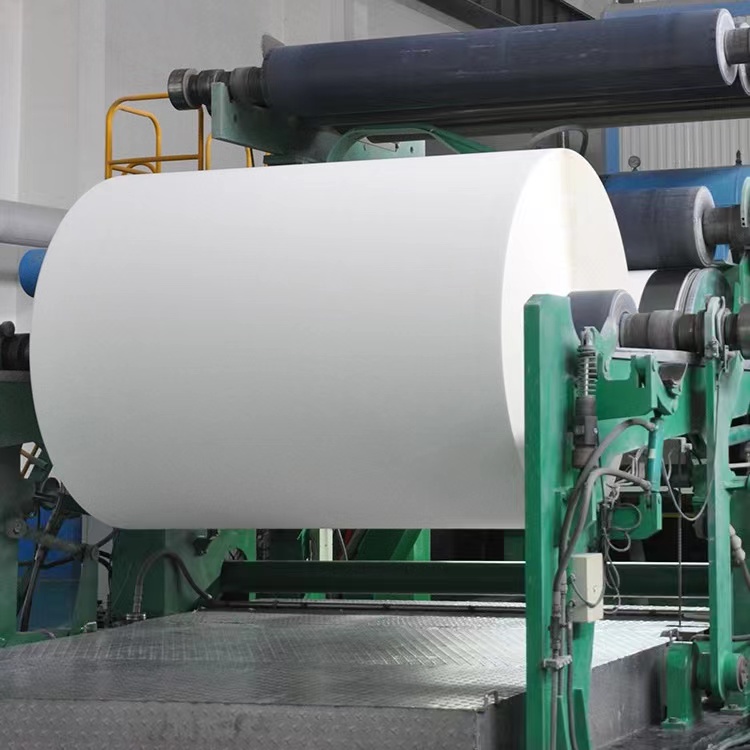

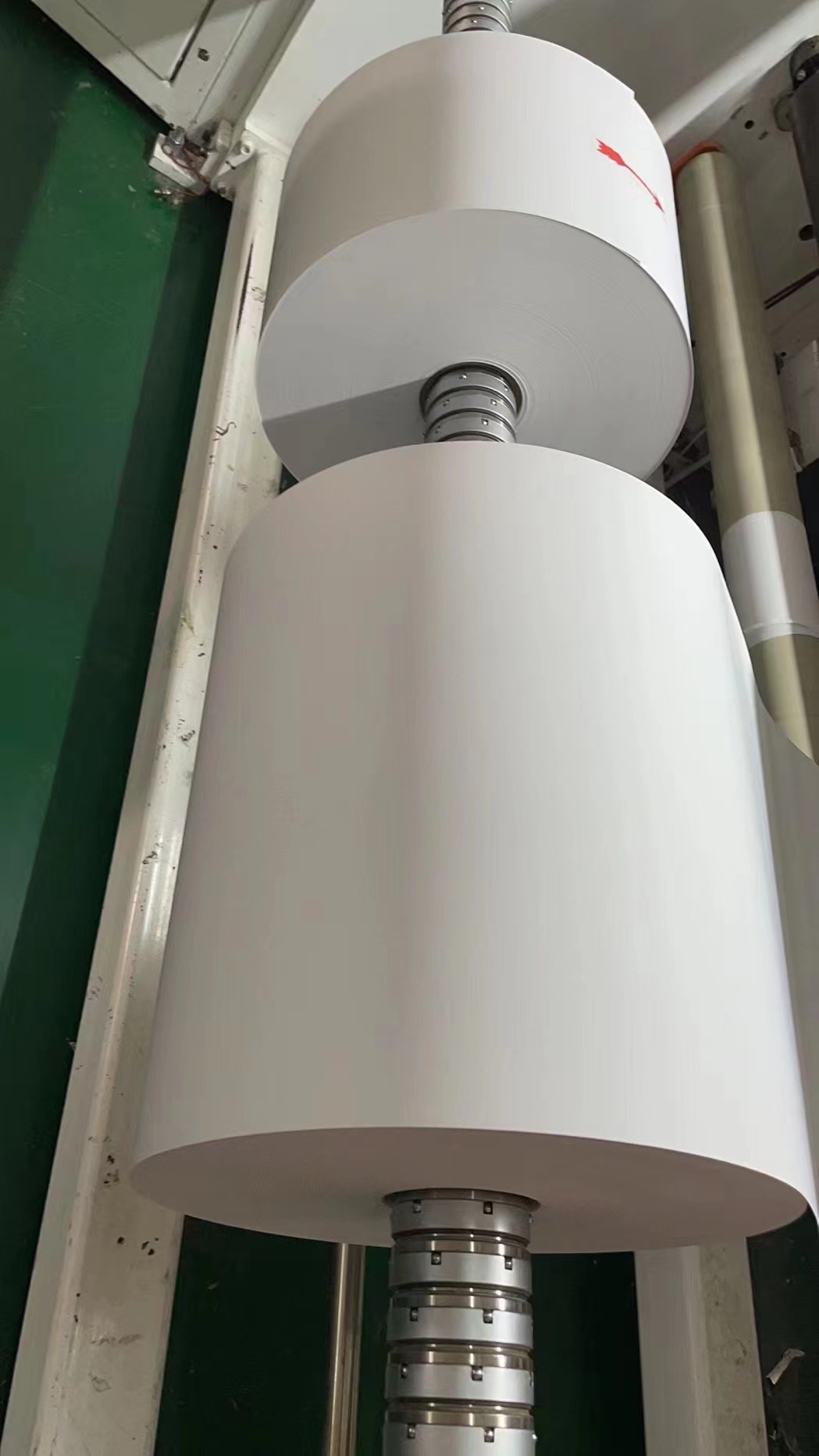

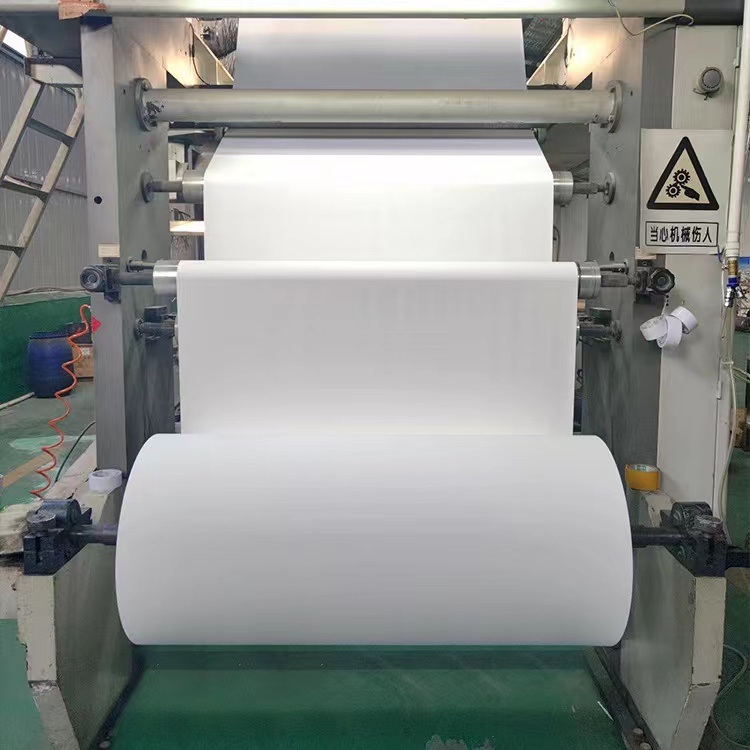

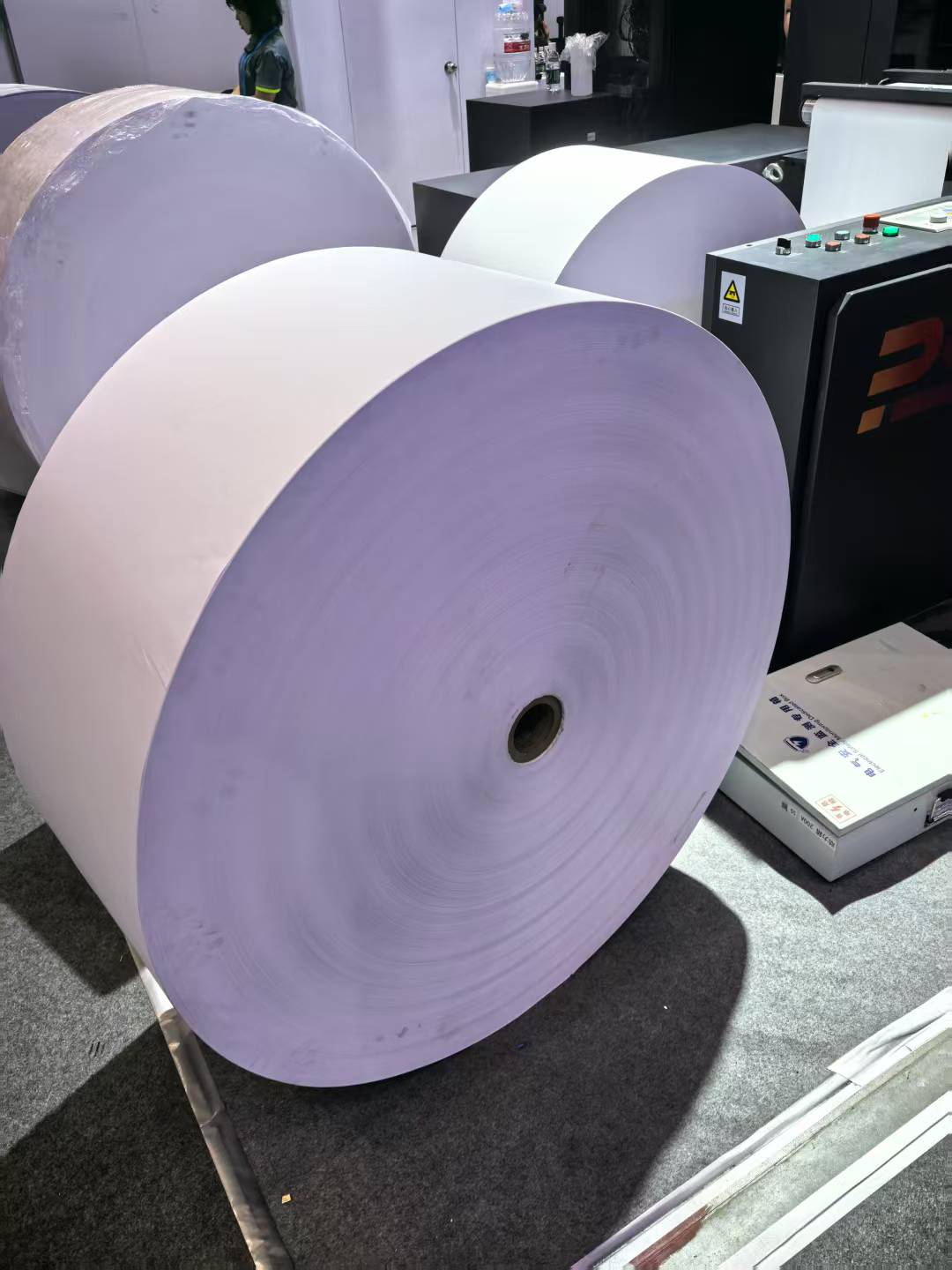

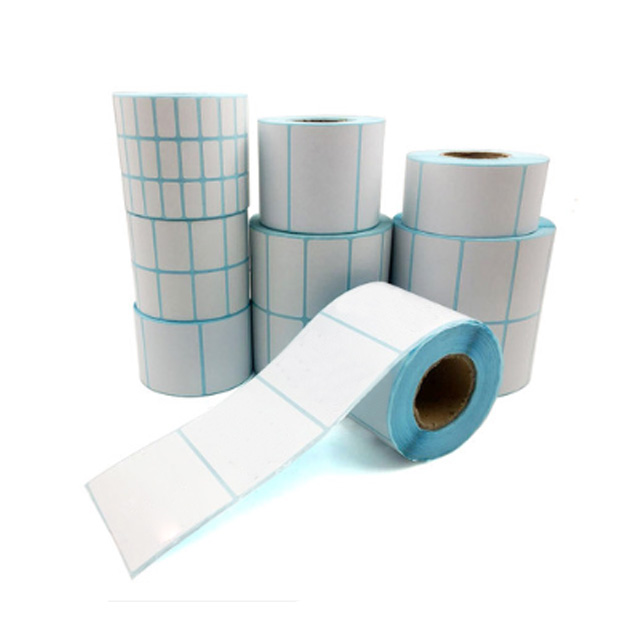

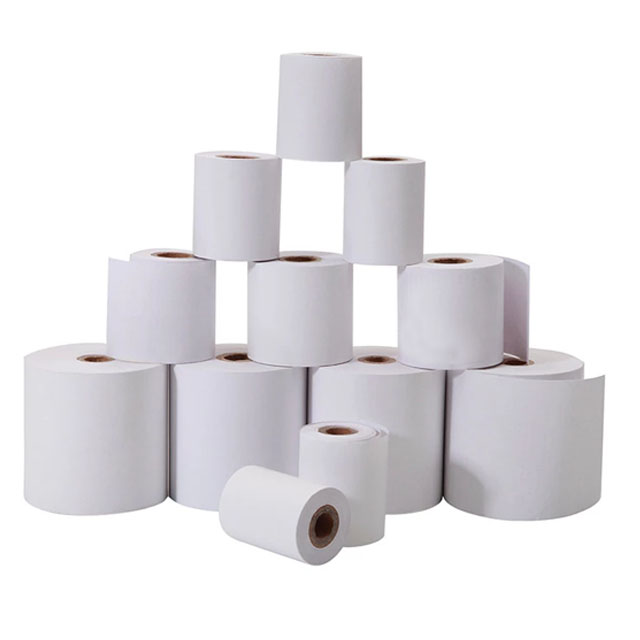

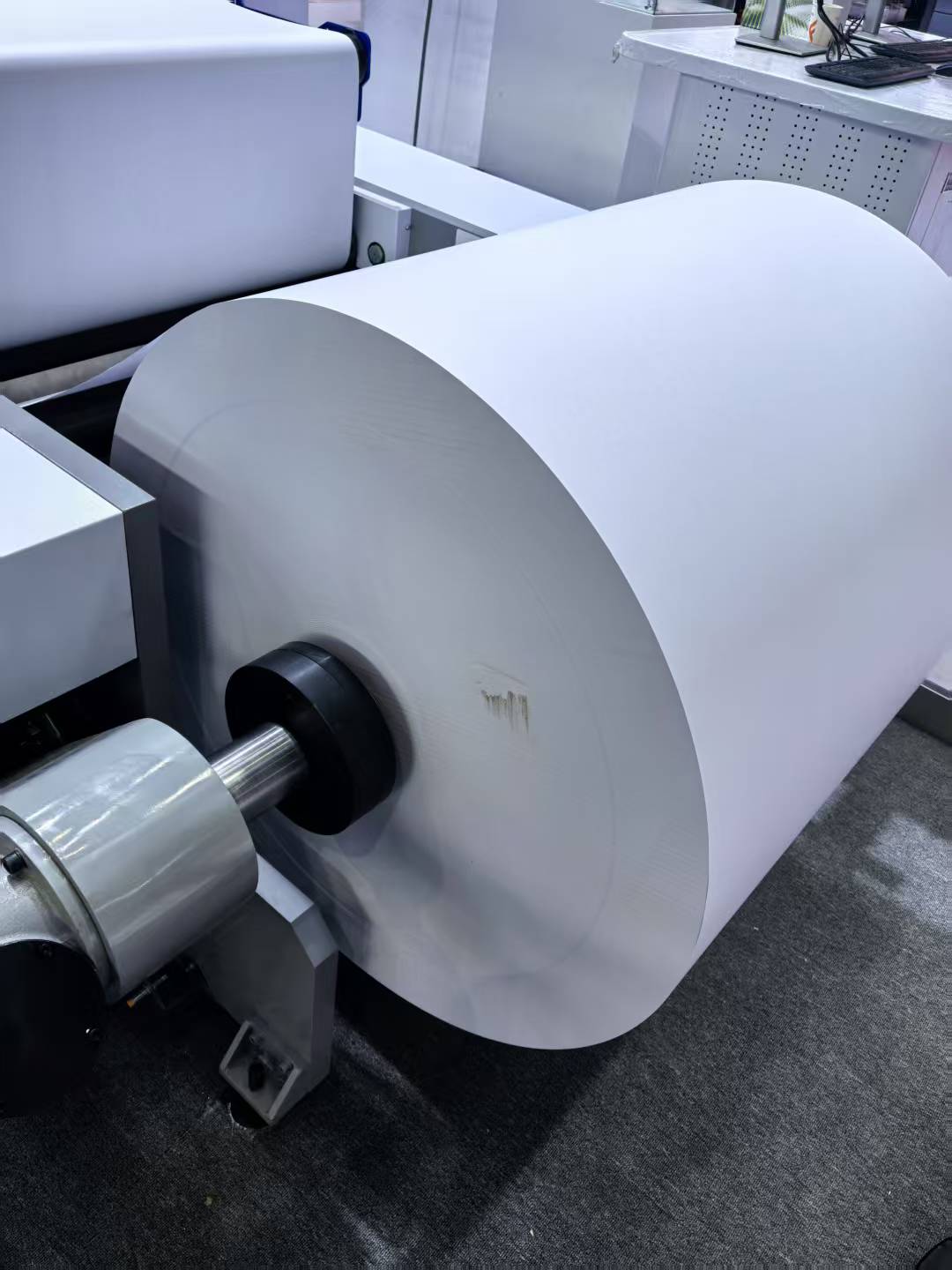

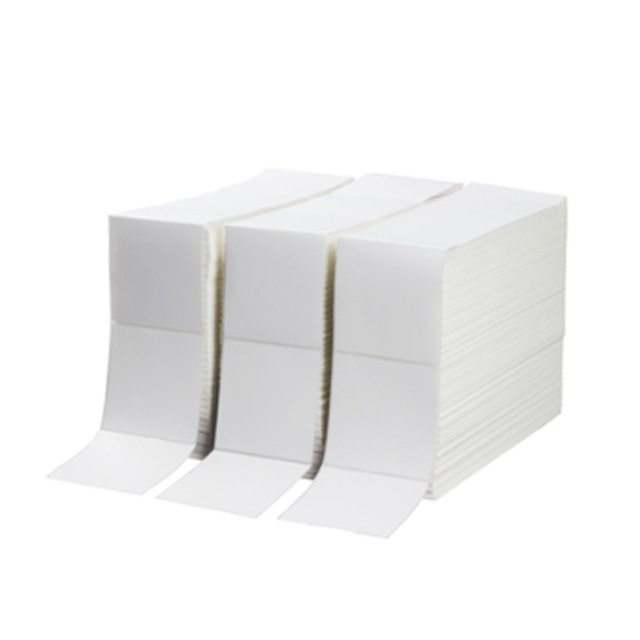

Thermal paper is originally termed as thermal fax paper or thermal recording paper. The paper is coated with a colorless formula, which will develop an image by the application of heat. The paper may be used as fax paper on fax machines, as thermal recording paper on cardiographic or industrial recording devices, or converted to ATM rolls or POS rolls for ATM or Place of Sale applications. Thermal paper with additional top-coat or semi top-coat may be used for logistic and supermarket labels, lottery tickets, train tickets, and many other applications.
Unit | Standard | Parameters | |||||||||
Gram Weight | gsm | ISO 537 | 45 | 48 | 50 | 55 | 58 | 65 | 70 | 80 | |
Basis Weight Variation | gsm | ISO 537 | ≤±5% | ≤±5% | ≤±5% | ≤±5% | ≤±5% | ≤±5% | ≤±5% | ≤±5% | |
Thickness | μm | ISO 534 | 50±2 | 52±3 | 54±3 | 60±3 | 76±2 | 80±3 | 82±2 | 86±2 | |
Density | g/cm³ | ISO 534 | ≤0.96 | ≤0.96 | ≤0.96 | ≤0.96 | ≤0.96 | ≤0.96 | ≤0.96 | ≤0.96 | |
Whiteness | % | ISO 2470 | ≥88 | ≥88 | ≥88 | ≥88 | ≥88 | ≥88 | ≥88 | ≥88 | |
Water absorption | gsm | ISO 535 | ≤35 | ≤35 | ≤35 | ≤35 | ≤35 | ≤35 | ≤35 | ≤35 | |
Smoothness (Front) | s | ISO 5627 | ≥200 | ≥200 | ≥200 | ≥200 | ≥200 | ≥200 | ≥200 | ≥200 | |
PPS roughness | μm | ISO 8791-4 | ≤2.0 | ≤2.0 | ≤2.0 | ≤2.0 | ≤2.0 | ≤2.0 | ≤2.0 | ≤2.0 | |
Dynamic sensitivity (0.42mj/dot) | O.D | TH-M2/N | ≥1.25 | ≥1.25 | ≥1.25 | ≥1.25 | ≥1.25 | ≥1.25 | ≥1.25 | ≥1.25 | |
Static sensitivity | 70°C | O.D | SWT | ≤0.20 | ≤0.20 | ≤0.20 | ≤0.20 | ≤0.20 | ≤0.20 | ≤0.20 | ≤0.20 |
105°C | O.D | ≥0.6 | ≥0.6 | ≥0.6 | ≥0.6 | ≥0.6 | ≥0.6 | ≥0.6 | ≥0.6 | ||
Moisture | % | ISO 287 | 5-6.5 | 5-6.5 | 5-6.5 | 5-6.5 | 5-6.5 | 5-6.5 | 5-6.5 | 5-6.5 | |
